Interactive C# Development

Filip W

not PM. not architect. not developer advocate.

strathweb.com@filip_wojgithub.com/filipw

dotnet watch

dotnet watch is a dotnet CLI tool that runs a specific dotnet CLI command, with a specified set of parameters, as soon as any source file changes in the project.

Adding dotnet watcher


<ItemGroup>
    <DotNetCliToolReference Include="Microsoft.DotNet.Watcher.Tools"
        Version="1.0.1" />
</ItemGroup>


Using dotnet watcher


C:\app>dotnet watch run

C:\app>dotnet watch run -f net462

C:\app>dotnet watch test

C:\app>dotnet watch script foo.csx


Running dotnet watcher


C:\code\IdentityWebApp>dotnet watch run
watch : Started
Hosting environment: Production
Content root path: C:\code\IdentityWebApp
Now listening on: http://localhost:5000
Application started. Press Ctrl+C to shut down.
watch : Exited with error code 1
watch : File changed: C:\code\IdentityWebApp\Translation\JwtTranslationGrant.cs
watch : Started
Hosting environment: Production
Content root path: C:\code\IdentityWebApp
Now listening on: http://localhost:5000
Application started. Press Ctrl+C to shut down.


Excluding items from watch


<ItemGroup>
  <ProjectReference Include="..\DataAccessLibrary\DataAccessLibrary.csproj" Watch="false" />
</ItemGroup>

<ItemGroup>
  <Watch Include="**\*.csx" Exclude="Codegen\**\*.cs;$(DefaultExcludes)" />
</ItemGroup>

<ItemGroup>
  <EmbeddedResource Update="Translations.resx" Watch="false" />
</ItemGroup>


Any executable on the PATH that follows the dotnet-{name} format can be used with dotnet CLI. It can then be used with watch: dotnet watch name.

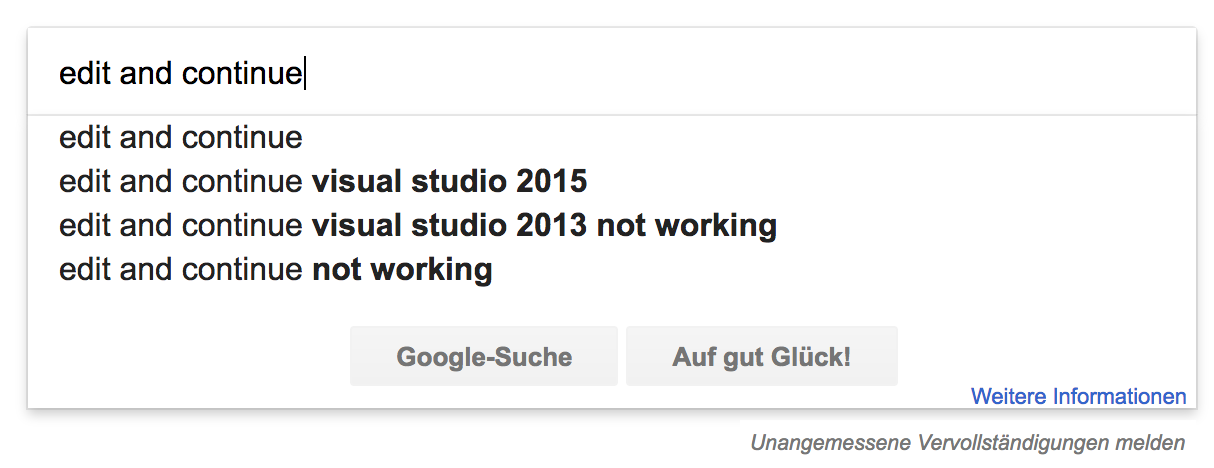

Edit and Continue

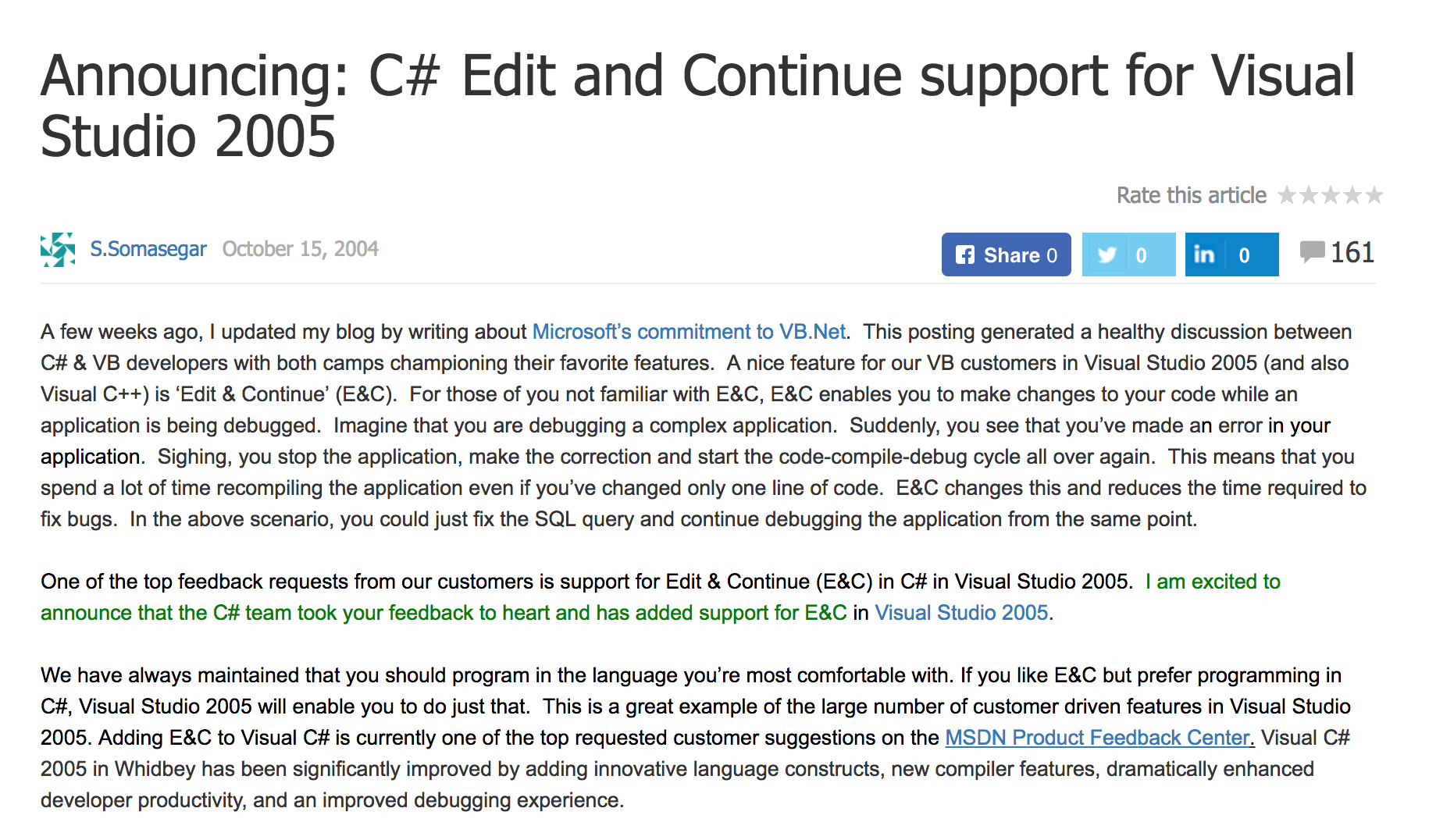

Edit-and-Continue was already present in "Visual Studio .NET 2003", but only for C/C++ code. Since Visual Studio 2005 you can make changes to code in break mode while debugging.

They are applied to the CLR directly without a need to restart the debugging session.

Program logic should not be tested in the debugger. You are wasting your time and your company's time if you do so.
- Microsoft MVP, 2004
Edit and continue is a bug-introducing machine. Why? Because you get to focusing on that one bug and twiddle the code to fix that one bug and introduce six more.
- Another Microsoft MVP, 2004

Roslyn introduced a ton of improvements to Edit-and-Continue, as the entire compiler part of that functionality was rewritten.

🦄 Allowed changes

  • Within Method/Property Bodies
    most changes
  • Within Types
    add methods, fields, constructors, nested types
  • Lambda expressions
    add/edit delegates, LINQ expressions (with limitations)
  • Async/await expressions & Iterators
    add/edit (with limitations)

💩 Prohibited changes

  • Add
    abstract/virtual/override member or type, using statements, imports, generics
  • Edit
    method signatures, interfaces, generics, enums
  • Remove
    members, types, namespaces, bodies
  • Rename
    anything

Visual Studio 2017 Version 15.3 introduces Edit-and-Continue for C# 7 features.

Edit And Continue with Roslyn (before)


class Program
{
    public static void Main()
    {
        Console.WriteLine(1);
    }
}


Edit And Continue with Roslyn (after)


class Program
{
    public static void Main()
    {
        Console.Write(2);
    }
}



// read metadata from the original compilation or using metadata reader
var originalMetadata = AssemblyMetadata.CreateFromStream(originalCompilationStream);
var baseline = EmitBaseline.CreateInitialBaseline(originalMetadata.GetModules()[0],
    handle => default(EditAndContinueMethodDebugInformation));

MemoryStream mdStream = new MemoryStream(), ilStream = new MemoryStream(), pdbStream = new MemoryStream();
var updatedMethods = new List<MethodDefinitionHandle>();

var edits = new[] {
    new SemanticEdit(SemanticEditKind.Update,
        originalCompilation.GlobalNamespace.GetMembers("Program").First().GetMembers("Main").First(),
        changedCompilation.GlobalNamespace.GetMembers("Program").First().GetMembers("Main").First())
};

var emitDifferenceResult = changedCompilation.EmitDifference(baseline, edits, mdStream, ilStream, pdbStream, updatedMethods);
// ilStream and mdStream can be now applied to the CLR


IL produced by EmitDifference


  // Code size        7 (0x7)
  .maxstack  8
  IL_0000:  ldc.i4.2
  IL_0001:  call       0x0A000006
  IL_0006:  ret


C# REPL

A Read–Eval–Print Loop (REPL), also known as an interactive toplevel or language shell, is a simple, interactive computer programming environment that takes single user inputs (i.e. single expressions), evaluates them, and returns the result to the user; a program written in a REPL environment is executed piecewise.

C# REPLs

  • CSI (C# Interactive)
    Official Roslyn script runner and REPL
  • scriptcs
    Rich and extensible command infrastructure
  • Mono
    Used to work x-plat before Roslyn
  • Online C# REPL
    csharppad.com

CSI is bundled with MSBuild Tools. It supports Desktop .NET only, but works cross platform via Mono.


~/Documents$ csi
Microsoft (R) Visual C# Interactive Compiler version 42.42.42.42424
Copyright (C) Microsoft Corporation. All rights reserved.

Type "#help" for more information.
> #r "System.Net.Http"
> using System.Net.Http;
> var client = new HttpClient();
> await client.GetStringAsync("https://gist.githubusercontent.com/filipw/7c22467439759c5f56cb2154717cdbe8/raw/93a4d2aa8034426c4ebcd20c67ac73daa11761dc/hello.txt");
"Hello from a gist"
>


CSI REPL Features

csi /u {...} /r {...} Seed the REPL with namespaces and references
csi script.csx /i Run a script and drop into REPL
#r "{assemblyPath}" Add an assembly reference
#load "{scriptPath}" Load a CSX script into REPL
Enter Evaluate command or drop into a new line
Ctrl+C Exit

Source code kinds in Roslyn


public enum SourceCodeKind
{
    Regular,
    Script
}


Creating a REPL compilation


public static CSharpCompilation Create(string assemblyName,
        IEnumerable<SyntaxTree> syntaxTrees = null,
        IEnumerable<MetadataReference> references = null,
        CSharpCompilationOptions options = null);

public static CSharpCompilation CreateScriptCompilation(string assemblyName,
        SyntaxTree syntaxTree = null,
        IEnumerable<MetadataReference> references = null,
        CSharpCompilationOptions options = null,
        CSharpCompilation previousScriptCompilation = null,
        Type returnType = null,
        Type globalsType = null);


Building a REPL with Roslyn


ScriptState<object> scriptState = null;
while (true)
{
    Console.Write("> ");
    var input = Console.ReadLine();
    scriptState = scriptState == null ?
        await CSharpScript.RunAsync(input) :
        await scriptState.ContinueWithAsync(input);
}


Surprises


// REPL global variables are compiled into fields
var numbers = new[] { 1, 2, 3, 4 };

// this is legal in a C# REPL
// in "regular" C# such shadowing produces CS0136
var x = numbers.Where(x => x % 2 == 0);


Surprises


// each submission gets it's own async execution context
// as a result, AsyncLocal doesn't work

> using System.Threading;
> var msg = new AsyncLocal<string>();
> msg.Value = "hello";
> msg.Value
null


Surprises


// submission code is always wrapped into a wrapper type
> class Foo { }
> typeof(Foo).IsNested
true


Surprises


// namespaces are not allowed
> namespace Foo { }
(1,1): error CS7021: Cannot declare namespace in script code
>



Surprises


// regular extension methods are not allowed
> var dateString = "2013-1-25";
> static class Ext {
    public static bool IsDate(this string val) {
        return DateTime.TryParse(val, out var dt);
    }
}
"(1,39): error CS1109: Extension methods must be defined in a top level static class; Ext is a nested class"


Surprises


// on the other hand, loose extension methods are allowed
> var dateString = "2013-1-25";
> public static bool IsDate(this string val) {
        return DateTime.TryParse(val, out var dt);
    }
> dateString.IsDate();
true

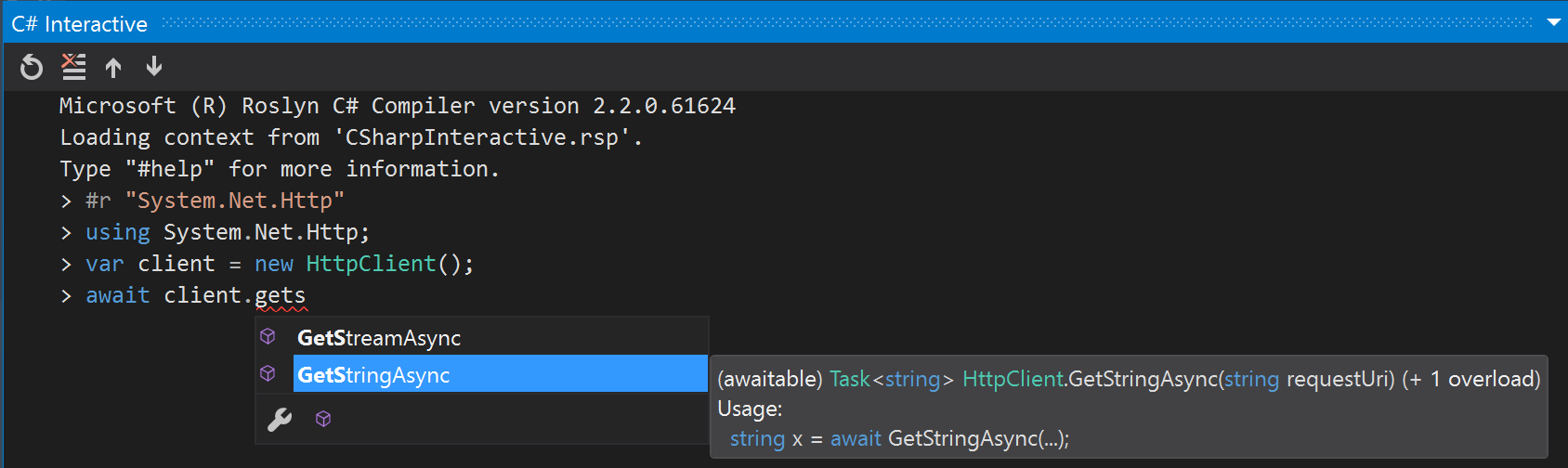

C# Interactive Window

C# Interactive Window is built into Visual Studio. It can be found under View > Other Windows menu.

Main C# Interactive Window Features

  • 📝 Intellisense & Colorization
    Completion services - same as those powering Visual Studio - are available
  • 📜 History navigation
    Cycle through submissions

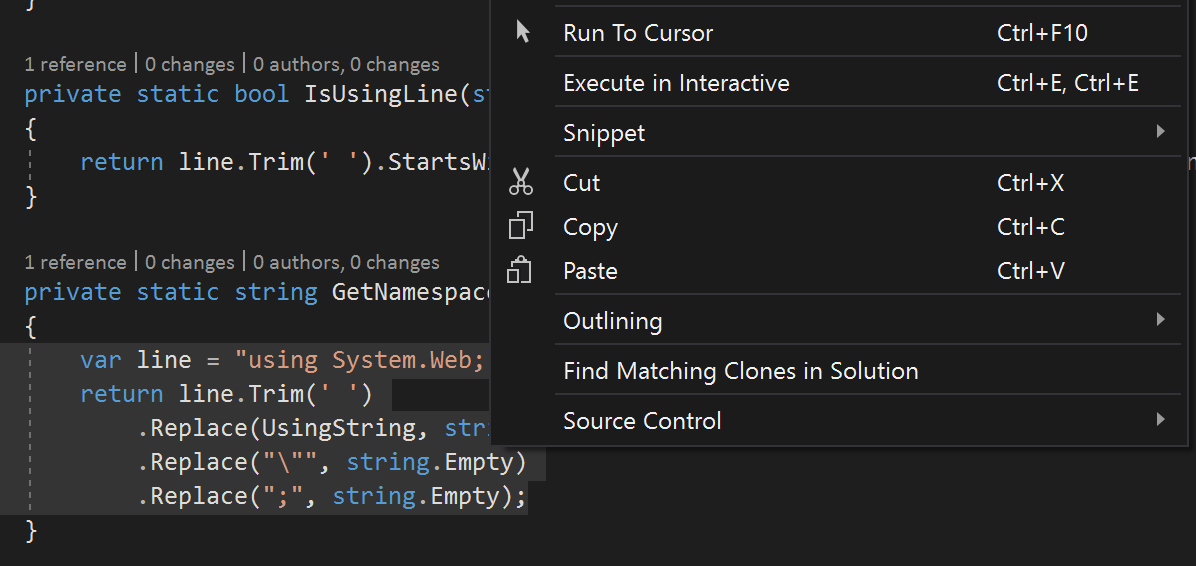

  • 🏓 Integration With Open Solution
    Send references and code into C# Interactive Window

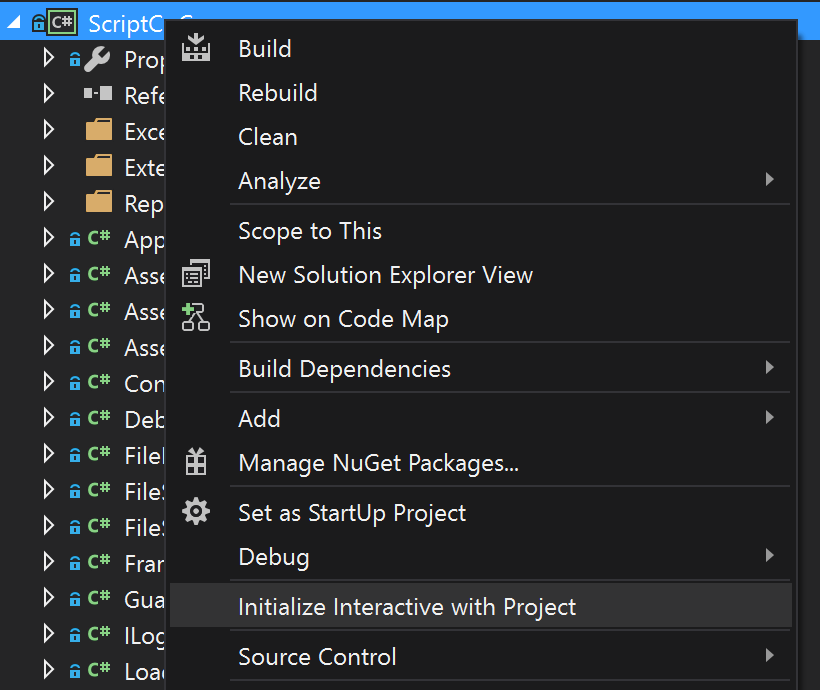

  • 🌽 Seeding
    C# Interactive Window can be seeded with references/using statements from a file

C# Interactive Window shares most of the code with CSI (the command line REPL).

Because of that same C# "gotchas" apply.

C# Interactive Window Features

All of the features of CSI are supported, plus:
#reset Reset the execution environment to the initial state
#cls Clear the execution window
ctrl+alt+arrow / alt+arrow History navigation

At the moment C# Interactive Window does not support .NET Core.

Xamarin Workbooks

Xamarin Workbooks provide a fantastic mix of a C# REPL and documentation. Workbook files are stored as Markdown files.


---
uti: com.xamarin.workbook
title: What's New in C# 7 | C# Guide
platforms:
- Console
---

## `out` variables

The existing syntax that supports `out` parameters has been improved in this version.

```csharp
var input = "8675309";

int numericResult;
if (int.TryParse(input, out numericResult))
    Console.WriteLine(numericResult);
else
    Console.WriteLine("Could not parse input");
```

You can now declare `out` variables in the argument list of a method call, rather than writing a separate declaration statement:

```csharp
if (int.TryParse(input, out int result))
    Console.WriteLine(result);
else
    Console.WriteLine("Could not parse input");
```


Main Xamarin Workbooks Features

  • 📝 Intellisense & Colorization
    Completion services powered by Roslyn
  • 🎁 Nuget package integration
    Reference Nuget packages from within the workbook
  • 🌈 Multi-platform and GUI support
    Console, Android, iOS, Mac, WPF
  • 📇 Rich Text Editor for Markdown
    Using the CommonMark spec

Internally, Xamarin Workbooks uses Roslyn submissions to provide its REPL-like features.

Live Unit Testing

Live Unit Testing was introduced in Visual Studio 2017. At the moment it is available only for Visual Studio Enterprise.

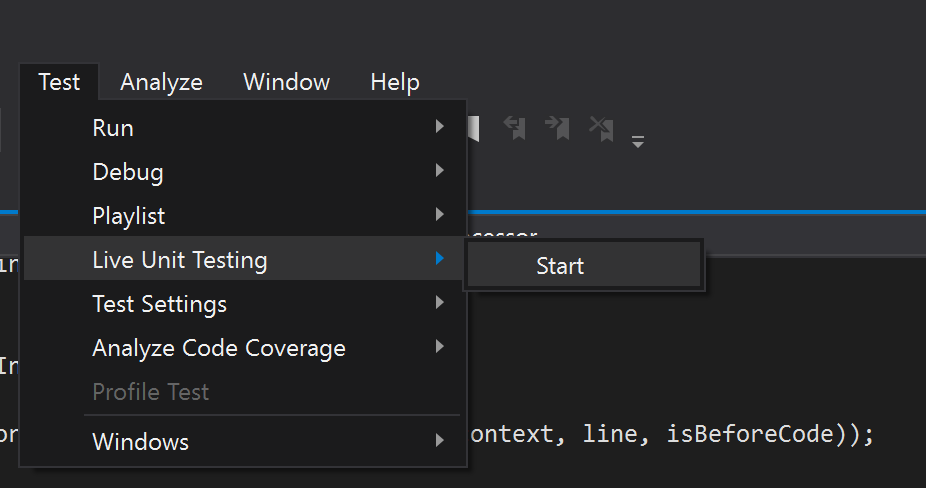

Starting Live Unit Testing globally

Starting Live Unit Testing per project

Unsupported Framework


[20:01:31.934 Error] Outdated package 'xunit'. Installed version: '1.9.2'.
Minimum supported version: '2.0.0'. Please update the package.

[20:01:31.949 Error] No test adapters are referenced by this solution.
If you have a test project, add a NuGet reference to a test adapter corresponding to the test framework used in order to run the tests.
If you already have the required NuGet reference in your test project, performing a NuGet restore may resolve the issue.

[20:01:31.949 Info] Start failed.
[20:01:31.965 Info] Live Unit Testing stopped.


Minimum Framework Versions

Framework Version Test Adapter
xUnit 2.0.0+ xunit.runner.visualstudio 2.2.0+
NUnit 3.5.0+ NUnit3TestAdapter 3.5.1+
MSTest 1.1.11+ MSTest.TestAdapter 1.1.11+

UNC Path


[22:29:08.780 Info] Live Unit Testing started.
[22:29:17.843 Info] Build completed (succeeded).
[22:29:18.890 Error] - FatalError - System.AggregateException: One or more errors occurred. ---> System.IO.DirectoryNotFoundException: Could not find a part of the path '\\Mac\Home\Documents\dev\scriptcs\.vs\ScriptCs\16636\t\test\ScriptCs.Core.Tests\bin\Debug\ScriptCs.Core.Tests.dll'.
   at System.IO.__Error.WinIOError(Int32 errorCode, String maybeFullPath)
   at System.IO.FileStream.Init(String path, FileMode mode, FileAccess access, Int32 rights, Boolean useRights, FileShare share, Int32 bufferSize, FileOptions options, SECURITY_ATTRIBUTES secAttrs, String msgPath, Boolean bFromProxy, Boolean useLongPath, Boolean checkHost)
   at System.IO.FileStream..ctor(String path, FileMode mode, FileAccess access, FileShare share)
   at Microsoft.CodeAnalysis.LiveUnitTesting.Aggregation.FileSpanCache.ReadAssembly(String assemblyFullPath, AssemblyIdentifier assembly)
   at Microsoft.CodeAnalysis.LiveUnitTesting.Aggregation.CoverageDataManager.PopulateSpanInformation(String buildOutputRootPath, AssemblyIdentifier assembly)
   at Microsoft.CodeAnalysis.LiveUnitTesting.Aggregator.<>c__DisplayClass26_0.<UpdateSpanInformation>b__1(AssemblyIdentifier assembly)
   at System.Threading.Tasks.Parallel.<>c__DisplayClass31_0`2.<ForEachWorker>b__0(Int32 i)
   at System.Threading.Tasks.Parallel.<>c__DisplayClass17_0`1.<ForWorker>b__1()
   at System.Threading.Tasks.Task.InnerInvokeWithArg(Task childTask)
   at System.Threading.Tasks.Task.<>c__DisplayClass176_0.<ExecuteSelfReplicating>b__0(Object )


Large Solution

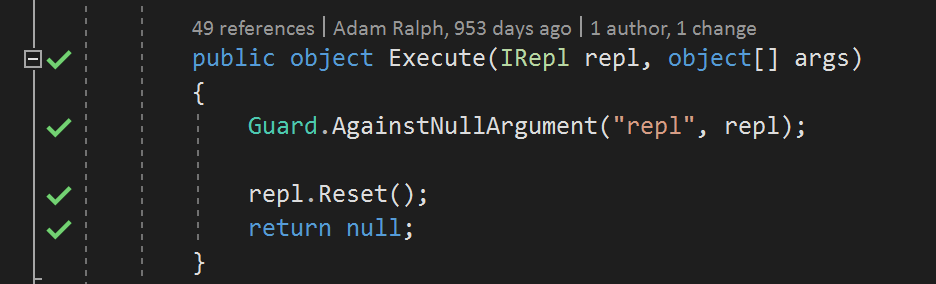

Everything OK

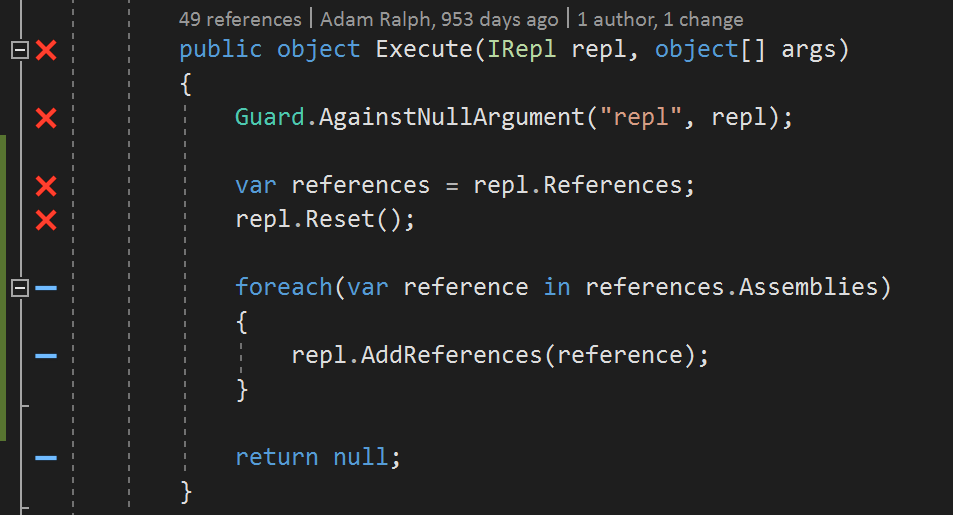

As soon as Filip addded some logic

Random Errors


[22:12:46.665 Info] Live Unit Testing started.
[22:12:53.060 Info] Build completed (succeeded).
[22:13:10.551 Info] Build completed (succeeded).

[22:13:12.820 Error] Live Unit Testing has been turned off because 'Microsoft.CodeAnalysis.LiveUnitTesting.EntryPoint.exe' process has exited unexpectedly.
Try turning it back on again via the 'Test -> Live Unit Testing -> Start' menu.

[22:13:12.820 Info] Live Unit Testing stopped.



Visual Studio 2017 Version 15.3 introduces Live Unit Testing for .NET Core projects.

Live Code Analyzers

Roslyn Features API

Find issue Change code Diagnostic Distribution
Analyzer 🕵️ 🦄
Code fix 🔧 🦄
Refactoring 🔧

Official Roslyn Analyzers

Package Description Example
Microsoft.CodeQuality.Analyzers API Design Guidelines Avoid async void
Microsoft.NetCore.Analyzers .NET Core APIs Avoid 0-length array allocations
Microsoft.NetFramework.Analyzers Desktop .NET APIs Do not use weak cryptographic algorithms
Microsoft.CodeAnalysis.Analyzers Roslyn APIs Missing diagnostic analyzer attribute
Roslyn.Diagnostics.Analyzers Roslyn Development Include public APIs in a PublicAPI.*.txt
Text.Analyzers Text included in code, such as comments. Spelling of C# identifiers

Some Community Analyzer Packages

  • Roslynator
    https://github.com/JosefPihrt/Roslynator
  • Code Cracker
    http://code-cracker.github.io
  • Stylecop Analyzers
    https://github.com/DotNetAnalyzers/StyleCopAnalyzers
  • Plenty of library-specific ones
    For example: https://github.com/xunit/xunit.analyzers

[DiagnosticAnalyzer(LanguageNames.CSharp)]
public class RemoveRegionAnalyzer : DiagnosticAnalyzer
{
    public const string DiagnosticId = "RemoveRegionAnalyzer";
    private const string Category = "Naming";
    private static DiagnosticDescriptor Rule = new DiagnosticDescriptor(DiagnosticId, "Regions are banned",
        "Region '{0}' can't be used. In fact no regions can.", "Sanity", DiagnosticSeverity.Error,
        isEnabledByDefault: true);

    public override ImmutableArray<DiagnosticDescriptor> SupportedDiagnostics => ImmutableArray.Create(Rule);

    public override void Initialize(AnalysisContext context)
    {
        context.RegisterSyntaxNodeAction(ctx => {
            var diagnostic = Diagnostic.Create(Rule, context.Node.GetLocation());
            context.ReportDiagnostic(diagnostic);
        }, ImmutableArray.Create(SyntaxKind.RegionDirectiveTrivia, SyntaxKind.EndRegionDirectiveTrivia));
    }
}


Analyzers & refactorings reference Roslyn DLLs from Visual Studio. Building an analyzer against Roslyn 1.0.0, allows it to run in Visual Studio 2015. Targetting newer Roslyn, restricts it to newer VS version only.
